Sewage & Sludge Pumps

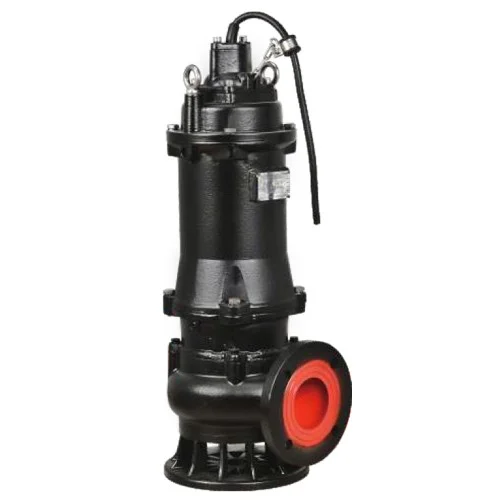

22kW Raw Sewage Pump

  • 22 kW

Original price was: R103,020.00.Current price is: R82,420.00.

In stock

High flow heavy duty submersible sewage pumps designed for freestanding as well as guide rail and duck foot installations in the mining, municipal, abattoir, and agricultural industries. These sewage submersible pumps are designed with an inlet cutter plate and a single channel impeller that allows for the pumping of stringy solids

  • Nationwide deliveryShipped from Pretoria
  • 12-month warrantyAgainst manufacturing defects
  • Expert advice061 744 1001
  • Secure checkoutEncrypted payment

Code: 60040041 Category:

Overview

Performance Range:

  1. Max Head: 27m
  2. Max Flow: 550m³/h
  3. Power: 22kW / 30HP
  4. Voltage: 380V
  5. Current: 45A
  6. Motor Speed: 4 Pole
  7. Impeller Passage: 60mm
  8. Outlet: 200mm

Operating Conditions:

  1. Liquid temperature: up to 40°C
  2. The density of liquid: 1.3g/cm3
  3. PH: 6 to 10
  4. Protection class: IP68, Class F
  5. Maximum immersion depth: 20m
  6. Cable length: 8m

Materials of Construction:

  1. Cast iron pump construction.
  2. Cast iron impeller construction, open type single channel.
  3. Integrated cutter mechanism located on pump inlet.
  4. Double mechanical shaft seal (silicon carbide-silicon carbide/carbon graphite-ceramic)
