Borehole Motors

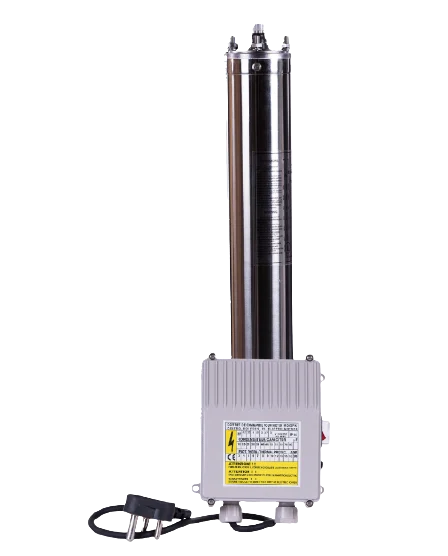

4” Borehole Motor And Control Box 0.55kW 220V

  • 4″
  • 0.55 kW
  • 220 V

R2,500.00

In stock

  • Nationwide deliveryShipped from Pretoria
  • 12-month warrantyAgainst manufacturing defects
  • Expert advice061 744 1001
  • Secure checkoutPayFast: card, Instant EFT & more

Code: 40010022-2 Category:

Overview

Technical Data:

  1. Speed: 2850rpm
  2. Voltage: 220-240V/ 50Hz
  3. Insulation class: B
  4. Protection grade: IP 68
  5. The highest temperature of liquid: 35oC
  6. Maximum solid handling: 40g/m3
  7. Motor casing: stainless steel
  8. Maximum diameter: Φ 95 mm
  9. With sand proof cover/pressure balance membrane/mechanical seal for high performance.

Motor Dimensions:

  1. Type: Single Phase:
  2. Motor Power: 0.55kW, 0.75HP
  3. Running: 3.6A
  4. Length: 329mm
  5. Weight: 7.3Kg
