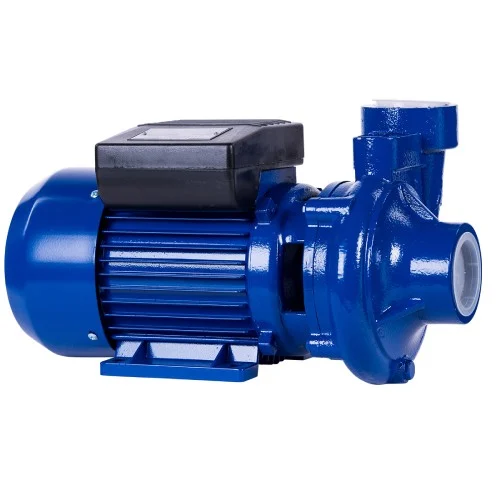

CP170 Booster Pump

SINGLE-STAGE BOOSTER PUMPS

CP170 Booster Pump

Range of performance

Flow rate:               Max 120 L/min  7200L/h)

Head:                     Max 44m

Power:                    1.1KW

Limits of use

Suction lift:                                       Max 7m

Liquid temperature:                         40 oC

Ambient temperature:                     40 oC

Uses and installations

This range is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials

of which the pump is made. Due to their reliability, simplicity of use, and economy, they are suitable for domestic use and in particular for irrigating and pressure boosting systems. The pump must be installed under a vented cover and protected against exposure to rain or water spray.

Construction Characteristics

Pump Body:              Cast Iron

Impeller:                    Brass

Motor Shaft:             Stainless Steel 304 Mechanical Seal:   Ceramic-graphite

Electric Motor:           Three-phase 380V – 50Hz with

capacitor and thermal overload protector.

Insulation:                 Class B

Protection:                 IP 44

PERFORMANCE

Technical Data
